Kothari Milkplan tanks guarantee functionality, milk quality and durability over extensive period of use. These tanks have innovative characteristics worthy of setting all industrial standards and are made of eco-friendly materials.

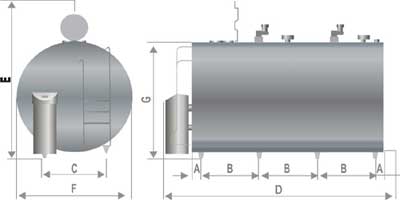

Vertical open type tank and Horizontal cylindrical closed type tank
AISI 304 Stainless steel inner and outer vessel.
Smooth inner sides, round angles, perfectly polished welding.
Adjustable legs for uneven floors.
Bottom designed to ensure total drain of Milk.
Safety design of Evaporator, Crash test at 65 Bar.
Fine Insulation with precisely controlled infusion of high density environment friendly polyurethane foam.
High precision stainless steel dipstick (AISI 304) for easy and direct volume reading in mm.
Manhole with AISI 304 close-fitting SS cover for closed type tank.
Butterfly valve outlet.

 Refrigerating plant
Direct expansion.
No freezing of milk, even at low filling.
Cost saving due to higher cooling efficiency
Performance as per class 2AII ISO 5708 standard.

ELECTRICALS
Milk tank controller manages following functions-
Milk temperature control.
Milk temperature digital display
Agitation program.
Compressor start-up program.
Extra protection against uneven voltage fluctuations for rural areas.
Electrical supply- Single phase 220 volt 50 Hz. Or Three phase 415 volt + N 50 Hz.

CLEANING (Optional) for closed type tank
Automatic C.I.P. system programmed through controller.
Washing cycle in five stages
Individual peristaltic pumps for detergent.
Extreme efficiency of washing, due to new design of spray jets
